| Power | L*W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 2337*81*90 | 5500lm/55W | 205SC.H135W+COB210 |
| 1467*81*90 | 4000lm/40W | 205SC.H120W+COB210 | |
| 1177*81*90 | 3500lm/35W | 205SC.H115W+COB210 | |
| Medium | 2337*81*90 | 6900lm/69W | 205SC.C149W+COB210 |
| 1467*81*90 | 4800lm/48W | 205SC.C128W+COB210 | |
| 1177*81*90 | 4100lm/41W | 205SC.C121W+COB210 | |
| High | 2337*81*90 | 11240lm/86W | 205SC.2C166W+COB210 |
| 1467*81*90 | 9980lm/57W | 205SC.2C137W+COB210 | |
| 1177*81*90 | 8720lm/48W | 205SC.2C128W+COB210 |
Beam angle:45°、24°、12°
也可订制上下射光，灯具尺寸不变，功率增加。
Can customize Direct/Indirect light, the fixture size is the same, the power will be increase
Material & technology
Light distribution：Direct Light,or Direct/Indirect Light
Light source：High brightness SMD LED, or T5 (G5)
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming
Other functions：Optional with emergency kits and multifunction sensor
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

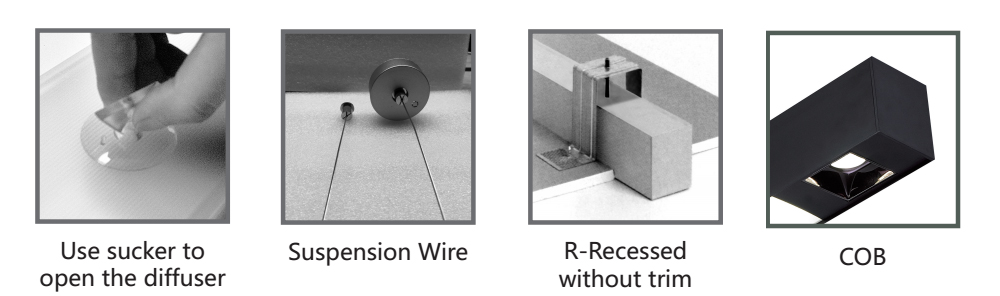

Diffuser：Opal prismatic diffuser with COB spotlight,COB with angle 45°，or customize 24°/15°
End caps material：ABS
IP：20
Installation：S-Suspended, C-Ceiling mounted, or R-Recessed without trim，Can connect with end caps,also can make 180°，90°，120° shadowless system without end caps to make various shapes.
